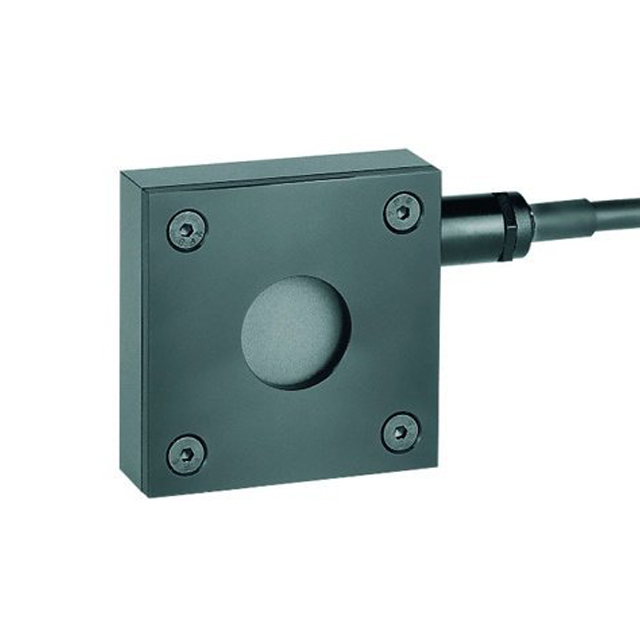

100C-UAE Thermal Power Laser Sensor

Updated:2025-03-13

Brand：Ophir
Model：100C-UAE
Description: The 100C-UAE is a thin profile thermal power laser sensor 14.5mm thick with mounting threads and with an 18mm aperture. It can measure from 60mW to 4W free standing and 100W when heat sinked. It has t
Data download

Feedback
WeChat

QQ

Online Service

Product Details

100C-UAE Thermal Power Laser Sensor Description：

The 100C-UAE is a thin profile thermal power laser sensor 14.5mm thick with mounting threads and with an 18mm aperture. It can measure from 60mW to 4W free standing and 100W when heat sinked. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20μm. It is connected via cable to a separate circuit board with Ethernet output.

100C-UAE Thermal Power Laser Sensor Drawing：

100C-UAE Drawing

100C-UAE Thermal Power Laser Sensor Specifications：

Aperture	?18mm
Spectral Range	0.19-20μm
Power Range	60mW-100W
Energy Range	NA
Dimensions	48 L x 48 W x 15 D (mm)
Max Average Power Density	14kW/cm2 at 100W
Response Time	1.2 s
Max Energy Density(for <100ns)	0.3J/cm2
Max Energy Density(for 2ms)	10J/cm2
Max Average Power	100W heat sinked
Communication	Ethernet
