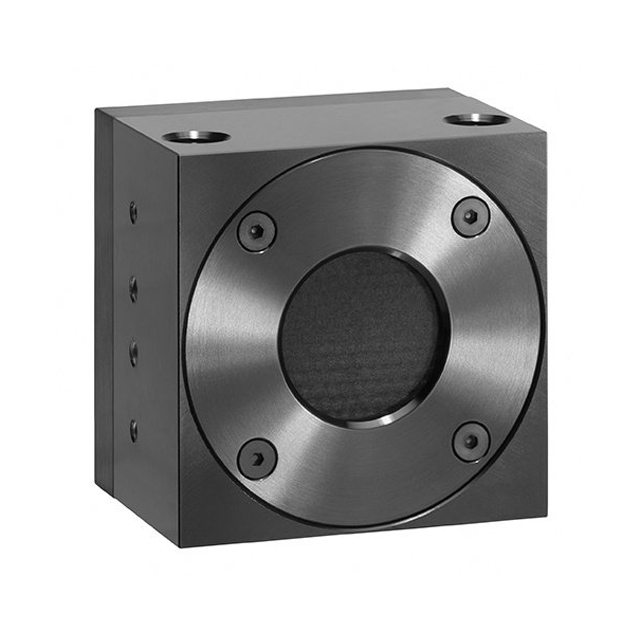

100W-AXL-UAF OEM Thermal Power Laser Measurement Sensor

Updated:2025-03-13

Brand：Ophir
Model：100W-AXL-UAF
Description: The 100W-AXL-UAF is a very fast response (~50ms) OEM thermal power laser measurement sensor with a 26mm aperture. It can measure from 400mW to 100W (water cooled only). It has the spectrally flat broa
Data download

Feedback
WeChat

QQ

Online Service

Product Details

100W-AXL-UAF OEM Thermal Power Laser Measurement Sensor Description：

The 100W-AXL-UAF is a very fast response (~50ms) OEM thermal power laser measurement sensor with a 26mm aperture. It can measure from 400mW to 100W (water cooled only). It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20μm. It has analog and RS232 output.

100W-AXL-UAF OEM Thermal Power Laser Measurement Sensor Drawing：

100W-AXL-UAF Drawing

100W-AXL-UAF OEM Thermal Power Laser Measurement Sensor Specifications：

Aperture	?26mm
Spectral Range	0.19-20μm
Power Range	400mW-100W
Energy Range	NA
Dimensions	60 L x 60 W x 45 D (mm)
Max Average Power Density	0.4kW/cm2
Response Time	50 ms 0-90%
Max Energy Density(for <100ns)	1.5J/cm2
Max Energy Density(for 2ms)	15J/cm2
Max Average Power	100W water cooled
Communication	RS232, Analog
