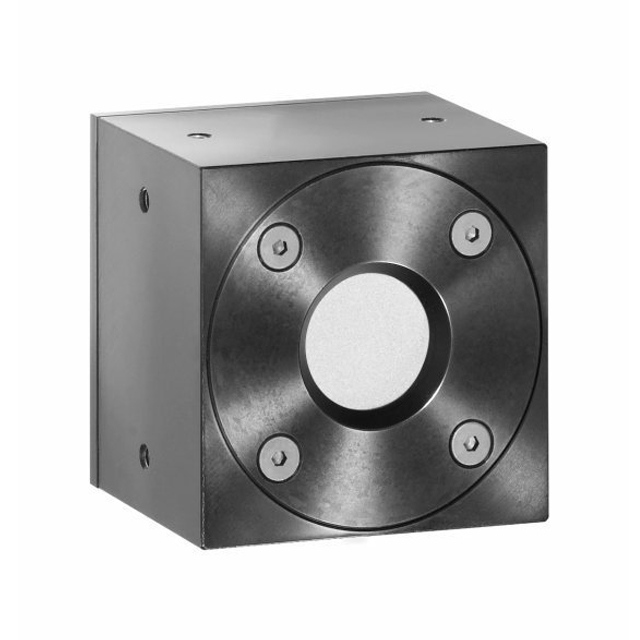

150C-UAU OEM Thermal Power/Energy Laser Measurement Sensor

Updated:2025-03-13

Brand：Ophir
Model：150C-UAU
Description: The 150C-UAU is an OEM thermal power/energy laser measurement sensor with an 18mm aperture. It can measure from 60mW to 5W free standing and 60W when heat sinked. It can measure energy from 20mJ to 10
Data download

Feedback
WeChat

QQ

Online Service

Product Details

150C-UAU OEM Thermal Power/Energy Laser Measurement Sensor Description：

The 150C-UAU is an OEM thermal power/energy laser measurement sensor with an 18mm aperture. It can measure from 60mW to 5W free standing and 60W when heat sinked. It can measure energy from 20mJ to 100J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20μm. It has USB output.

150C-UAU OEM Thermal Power/Energy Laser Measurement Sensor Drawing：

150C-UAU Drawing

150C-UAU OEM Thermal Power/Energy Laser Measurement Sensor Specifications：

Aperture	?18mm
Spectral Range	0.19-20μm
Power Range	60mW-150W
Energy Range	20mJ-100J
Dimensions	50 L x 50 W x 38 D (mm)
Max Average Power Density	20kW/cm2 at 60W
Response Time	1.2 s
Max Energy Density(for <100ns)	0.3J/cm2
Max Energy Density(for 2ms)	10J/cm2
Max Average Power	150W for 1min free standing
Communication	USB
