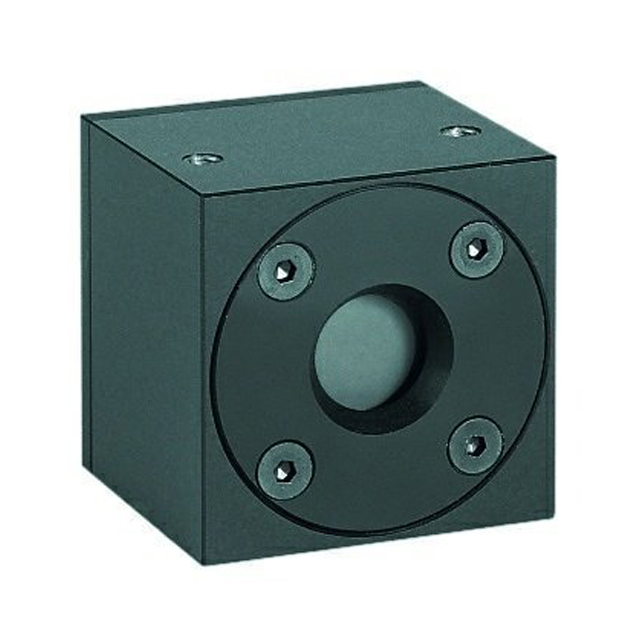

20C-UAS OEM Thermal Power/Energy Laser Sensor

Updated:2025-03-13

Brand：Ophir
Model：20C-UAS
Description: The 20C-UAS is a very compact OEM thermal power/energy laser sensor with built in electronics and dimensions only 38x38x34mm. It has a 12mm aperture and measures from 10mW to 4W stand alone and up to
Data download

Feedback
WeChat

QQ

Online Service

Product Details

20C-UAS OEM Thermal Power/Energy Laser Sensor Description：

The 20C-UAS is a very compact OEM thermal power/energy laser sensor with built in electronics and dimensions only 38x38x34mm. It has a 12mm aperture and measures from 10mW to 4W stand alone and up to 20W when heat sinked. It can measure energy from 6mJ to 10J. Its broadband coating covers the spectral range from 0.19 to 20μm. It has analog and RS232 output.

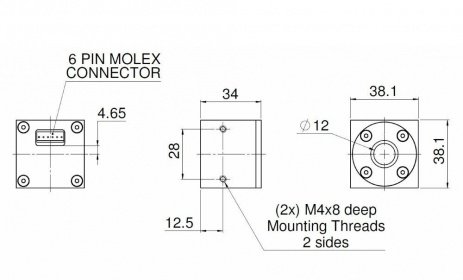

20C-UAS OEM Thermal Power/Energy Laser Sensor Drawing：

20C-UAS Drawing

20C-UAS OEM Thermal Power/Energy Laser Sensor Specifications：

Aperture	?12mm
Spectral Range	0.19-20μm
Power Range	10mW-20W
Energy Range	6mJ-10J
Dimensions	38 L x 38 W x 34 D (mm)
Max Average Power Density	23kW/cm2 at 20W
Response Time	0.8 s
Max Energy Density(for <100ns)	0.3J/cm2
Max Energy Density(for 2ms)	10 J/cm2
Max Average Power	20W heat sinked
Communication	RS232, Analog
