5000W-BB-50 High power water-cooled thermal sensor

Updated:2025-03-13

Brand: Ophir
Model: 5000W-BB-50
Description: The 5000W-BB-50 is a water cooled thermal power/energy laser measurement sensor with a 50mm aperture. It can measure power from 20W to 5000W. It has the spectrally flat broadband coating and covers th
Data download

Feedback
WeChat

QQ

Online Service

Product Details

5000W-BB-50 High power water-cooled thermal sensor：

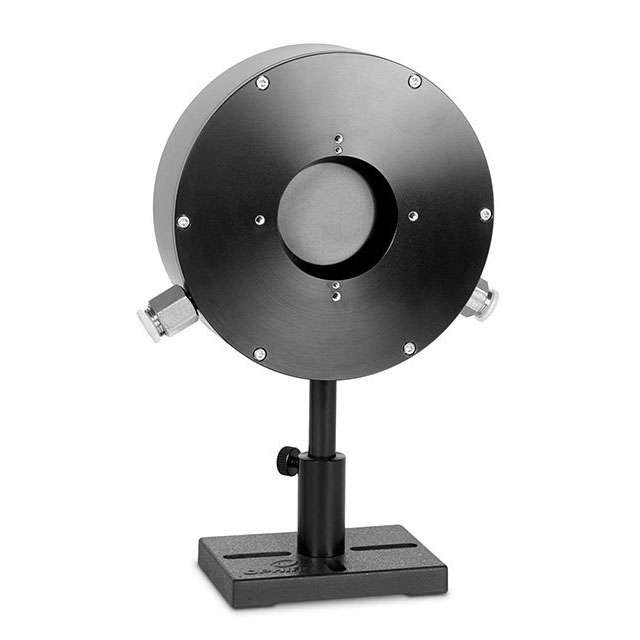

The 5000W-BB-50 is a water cooled thermal power/energy laser measurement sensor with a 50mm aperture. It can measure power from 20W to 5000W. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

5000W-BB-50 Drawing of high power water cooled thermal sensor：

5000W-BB-50 Drawing

5000W-BB-50 Specification for high power water cooled thermal sensor：

Absorber Type	Broadband
Aperture	?50mm
Spectral Range	0.19-20μm
Power Range	20W-5000W
Energy Range	N.A.
Backscattered Power	N.A.
Dimensions	?146 W x 47 D (mm)
Max Pulse Energy	N.A.
Max Average Power Density	1.7kW/cm2
Response Time	3 s
Max Energy Density (for <100ns)	0.3J/cm2
Max Energy Density (for 2ms)	10J/cm2
Max Average Power	5000W
BeamTrack Functions	N.A.
Compliance	CE, China RoHS
