5000WP-LP2-50 7Z02788 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: 5000WP-LP2-50
Description: The 5000WP-LP2-50 is a water cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 50mm aperture and can measure power from 20W to 5000W. Its high
Data download

Feedback
WeChat

QQ

Online Service

Product Details

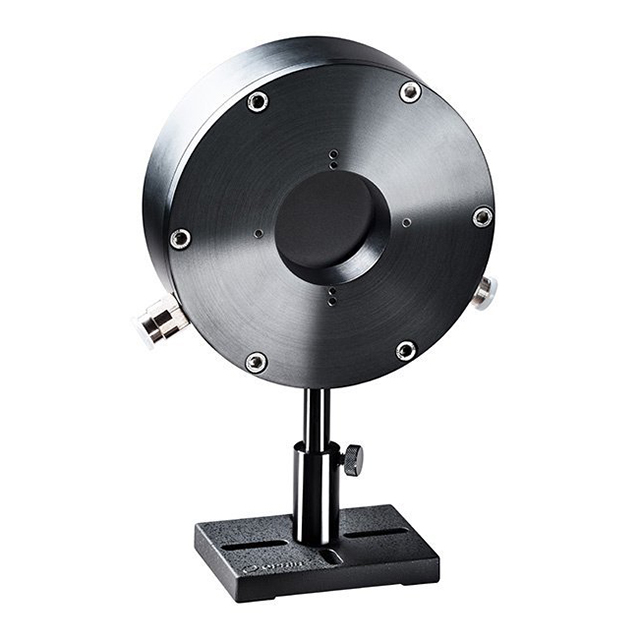

5000WP-LP2-50 7Z02788 Laser Measurement Sensor Description:

The 5000WP-LP2-50 is a water cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 50mm aperture and can measure power from 20W to 5000W. Its high damage threshold LP2 coating covers the spectral range 0.35 - 2.2μm. This sensor is specially designed for noncontaminating water flow. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

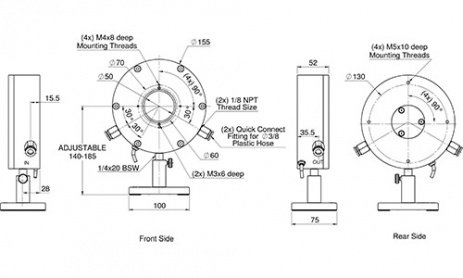

5000WP-LP2-50 7Z02788 Laser Measurement Sensor Drawing：

5000WP-LP2-50 Drawing

5000WP-LP2-50 7Z02788 Laser Measurement Sensor Specification：

Absorber Type	LP2
Aperture	?50mm
Spectral Range	0.35-2.2μm
Power Range	20W-5000W
Energy Range	N.A.
Backscattered Power	N.A.
Dimensions	?155 W x 52 D (mm)
Max Pulse Energy	N.A.
Max Average Power Density	2.5kW/cm2
Response Time	3 s
Max Energy Density (for <100ns)	0.1J/cm2
Max Energy Density (for 2ms)	130J/cm2
Max Average Power	5000W
BeamTrack Functions	N.A.
