Brand: OPHIR

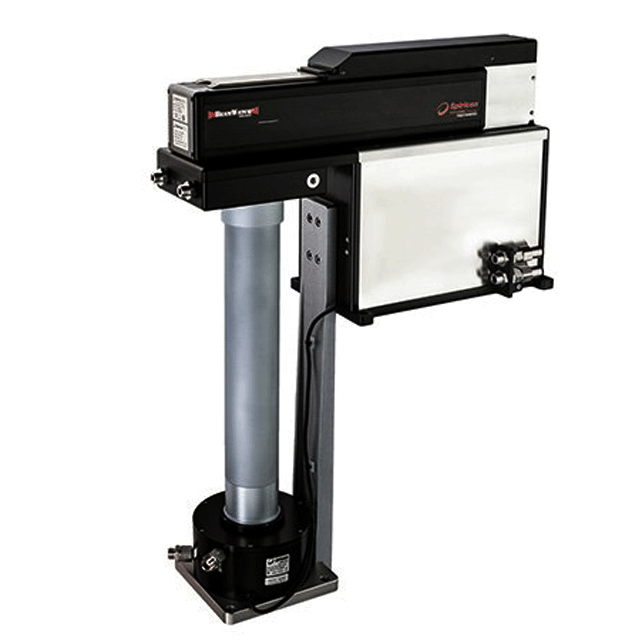

Model: BeamWatch
Description: With a louver reinforced design, BeamWatch Integrated is a small yet self-contained system that can accommodate different types of welding heads. Various interfaces enable the system to be integrated
Data download

Feedback
WeChat

QQ

Online Service

Automatically measure laser power, caustic and focus shift in real time
Support single-mode lasers
Fully automated operation
Trend analysis with good/bad signal
Detailed report with time stamp
Ability to work with different types of welding heads w/o changes to the measurement system
Rugged for industrial production environment
Short measurement time for frequent measurements during shift operation
Short measurement time for frequent measurements during shift operation

Wavelengths	980-1080 nm
Power Range	500 W – 9999 W (up to 30 kW on request)
Beam Profiling	ISO 11146 Measurements
Power Meter	NIST traceable calibration ±3 %
Max Beam Diameter at Entrance/Exit	12.5 mm
Interface	GigE, PROFINET, EtherNet/IP, CC-Link
Compliance	CE, UKCA, China RoHS
