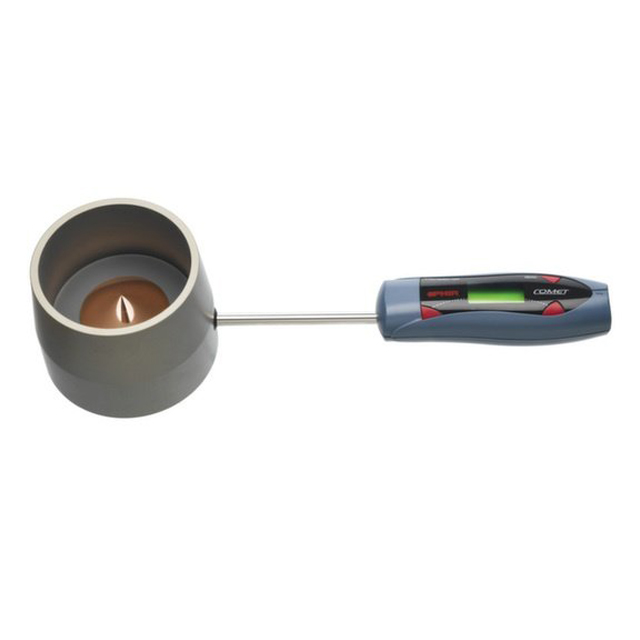

Comet 10K-HD 7Z02706 Portable Power Puck Laser Sensor

Updated:2025-03-13

Brand：Ophir
Model：Comet 10K-HD
Description: The high damage threshold Comet 10K-HD is a portable power puck laser sensor with a 55mm aperture. It can measure power from 200W to 10kW by sampling a 30s exposure of laser power. It has a deflecting
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Comet 10K 7Z02705 Power Puck Laser Sensor Description:

The Comet 10K is a portable power puck laser sensor with a 100mm aperture. It can measure power from 200W to 10kW by sampling a 20s exposure of laser power. It has a broadband coating and is calibrated for 0.98 – 1.07μm and 10.6μm.

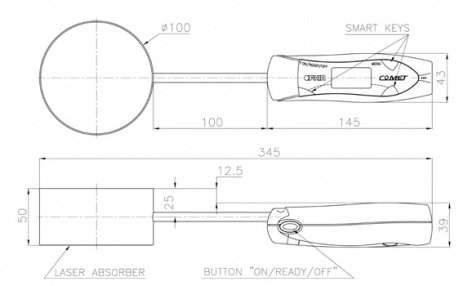

Comet 10K 7Z02705 Power Puck Laser Sensor Drawing：

Comet 10K Drawing

Comet 10K 7Z02705 Power Puck Laser Sensor Specification：

Absorber Type	N.A.
Aperture	?55mm
Spectral Range	0.98-1.07μm and 10.6μm
Power Range	200W-10,000W
Energy Range	N.A.
Backscattered Power	N.A.
Dimensions	355 L x 87 W x 110 D (mm)
Max Pulse Energy	N.A.
Max Average Power Density	2kW/cm2
Response Time	N.A.
Max Energy Density (for <100ns)	1J/cm2
Max Energy Density (for 2ms)	45J/cm2
Max Average Power	10kW
BeamTrack Functions	N.A.
