F100A-PF-DIF-33 P/N7Z02744 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: F100A-PF-DIF-33
Description: The F100A-PF-DIF-33 is a fan cooled thermal power/energy laser measurement sensor for high peak power pulsed lasers. It has a 33mm aperture and can withstand pulses of up to 4J/cm2. It can measure pow
Data download

Feedback
WeChat

QQ

Online Service

Product Details

F100A-PF-DIF-33 P/N7Z02744 Laser Measurement Sensor Introduction：

The F100A-PF-DIF-33 is a fan cooled thermal power/energy laser measurement sensor for high peak power pulsed lasers. It has a 33mm aperture and can withstand pulses of up to 4J/cm2. It can measure power from 50mW to 100W and energy from 60mJ to 200J and covers the spectral range from 0.24 to 2.2μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

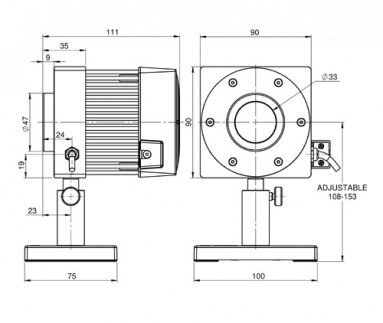

F100A-PF-DIF-33 P/N7Z02744 Laser Measurement Sensor Drawing：

F100A-PF-DIF-33 Drawing

F100A-PF-DIF-33 P/N7Z02744 Laser Measurement Sensor Specification：

Absorber Type	PF type + diffuser
Aperture	?33mm
Spectral Range	0.24 – 2.2μm
Power Range	50mW-100W
Energy Range	60mJ-200J
Backscattered Power	N.A.
Dimensions	90 L x 90 W x 111 D (mm)
Max Pulse Energy	200J
Max Average Power Density	>6 kW/cm2
Response Time	2.5 s
Max Energy Density (for <100ns)	4J/cm2
Max Energy Density (for 2ms)	35J/cm2
Max Average Power	100W
BeamTrack Functions	N.A.
