FL400A-BB-50 P/N7Z02734 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: FL400A-BB-50
Description: The FL400A-BB-50 is a general purpose fan cooled thermal power/energy laser measurement sensor with a 50mm aperture. It can measure power from 300mW to 400W continuously and to 500W intermittently. It
Data download

Feedback
WeChat

QQ

Online Service

Product Details

FL400A-BB-50 P/N7Z02734 Laser Measurement Sensor Introduction：

The FL400A-BB-50 is a general purpose fan cooled thermal power/energy laser measurement sensor with a 50mm aperture. It can measure power from 300mW to 400W continuously and to 500W intermittently. It can measure energy from 75mJ to 600J. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

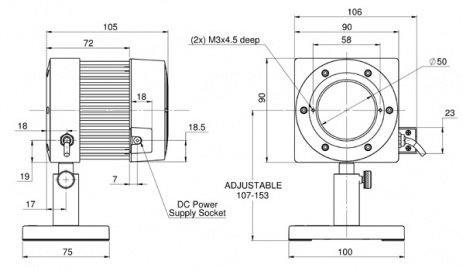

FL400A-BB-50 P/N7Z02734 Laser Measurement Sensor Drawing：

FL400A-BB-50 Drawing

FL400A-BB-50 P/N7Z02734 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	?50mm
Spectral Range	0.19-20μm
Power Range	300mW-500W
Energy Range	75mJ-600J
Backscattered Power	N.A.
Dimensions	90 L x 90 W x 105 D (mm)
Max Pulse Energy	600J
Max Average Power Density	8.5kW/cm2
Response Time	4 s
Max Energy Density (for <100ns)	0.3J/cm2
Max Energy Density (for 2ms)	10J/cm2
Max Average Power	500W
BeamTrack Functions	N.A.
