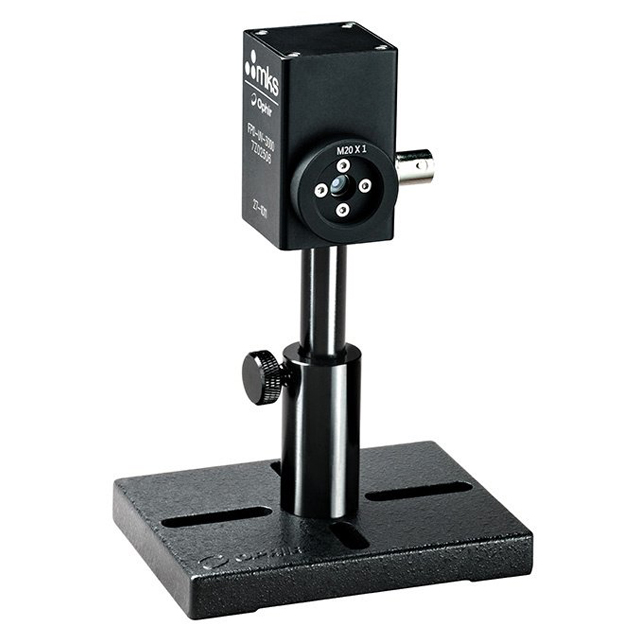

FPD-UV-3000 7Z02506 Fast Optical Detector

Updated:2025-03-13

Brand：Ophir
Model：FPD-UV-3000
Description: The FPD-UV-3000 is a fast optical detector for visualizing and measuring the temporal characteristics of laser beams in the spectral range from 193 nm to 1100 nm. It has a UV enhanced silicon PIN phot
Data download

Feedback
WeChat

QQ

Online Service

Product Details

FPD-UV-3000 7Z02506 Fast Optical Detector Description：

Datasheet Product Manual

The FPD-UV-3000 is a fast optical detector for visualizing and measuring the temporal characteristics of laser beams in the spectral range from 193 nm to 1100 nm. It has a UV enhanced silicon PIN photodiode and is designed to convert optical signals into electrical signals which are then measured with third party measurement instrumentation such as oscilloscopes or spectrum analyzers for measurement. The FPD-UV-3000 has a rise time of 3 nsec. Its reverse bias voltage is provided by an external DC power supply (included).

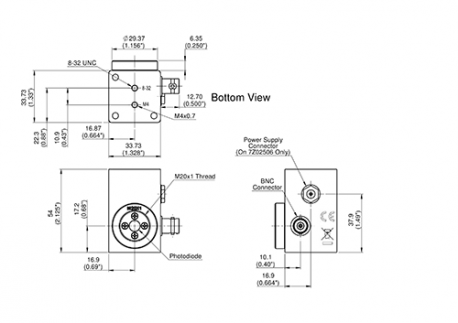

FPD-UV-3000 7Z02506 Fast Optical Detector Drawing：

FPD-UV-3000 Drawing

FPD-UV-3000 7Z02506 Fast Optical Detector Specifications：

Detector Type	UV-Si
Rise Time/Fall Time	3 nsec
Spectral Range	193-1100 nm
Active Area Diameter	2.55 mm
Noise Equivalent Power	<0.10 pW/√Hz
Dimensions	54 L x 34 W x 40 D (mm)
Detector Area	5.11 mm2
Wavelength of Peak Sensitivity	890 nm
Responsivity at Peak Wavelength	0.58 A/W
Responsivity (Irradiance) at Peak Wavelength	1.5 V/(W/cm2)
Bias Voltage	24 VDC
Bias Voltage Source	External
Bandwidth	>118 MHz
Dark Current	<10 nA
Maximum Average Power Input	15 mW
Mounting (Tapped Holes)	8-32 & M4
Output Connector	BNC
Accessory Threads	M20x1
