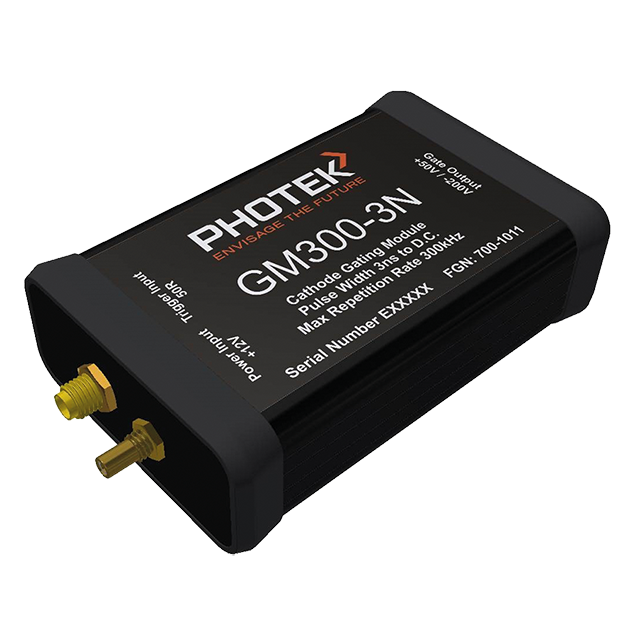

GM300-3N Gating Modules

Updated:2025-03-13

Brand: PHOTEK
Model: GM300-3N
Description: Photek’s range of photocathode gates units can be used with our image intensifiers and PMTs as ultra fast electronic shutters.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

GM300-3N Gating Modules description：

This technique is useful when the detector is used in high brightness situations or when capturing very fast moving objects. The gate unit operates by turning the photocathode on and off to 3 ns with a 300 KHz repetition rate (model dependant). For UHV detectors our GM-MCP gate module enables direct gating of the MCP to 8 ns. This is particularly useful when time slicing of electrons and ions is required.

GM300-3N Gating Modules product line：

PHOTEK PART NO.	DESCRIPTION
M10-50B	50 ns, 10 KHz repetition gate unit
GM300-3	3 ns, 300 KHz repetition rate gate unit
GM300-8U	8 ns, 300 KHz repetition rate universal gate unit.
GM-MCP3-500	10ns, 1 KHz repetition rate 500V MCP gate unit
GM-MCP3-1000	10ns, 1KHz repetition rate 1000v MCP gate unit
IGC3	Gate controller, minimum pulse width 3 ns with 250 ps increments
