Brand: Gentec-EO

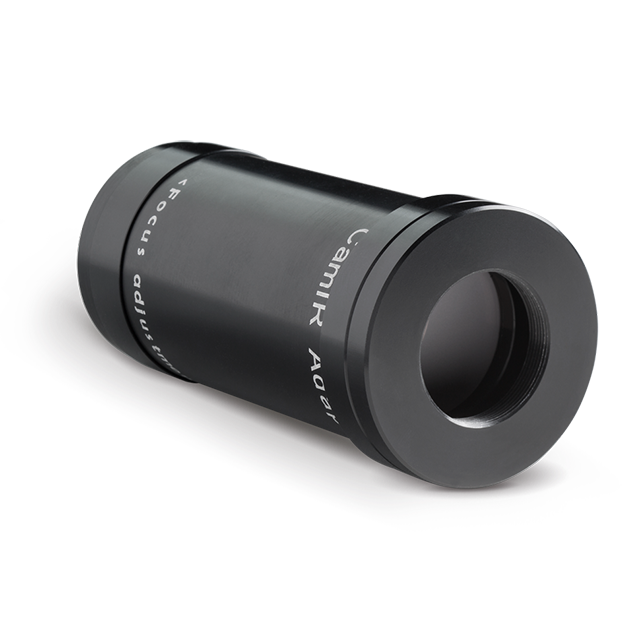

Model: IR Adaptor
Description: Gentec-EO IR Adaptor to expand the BEAMAGE range to near-IR telecom wavelengths. Must be purchased with BEAMAGE for in-factory tuning.
Data download

Feedback
WeChat

QQ

Online Service

Gentec-EO IR Adaptor to expand the BEAMAGE range to near-IR telecom wavelengths. Must be purchased with BEAMAGE for in-factory tuning.

Key Features

Convert IR light to visible

The IR adaptor converts wavelengths between 1495 nm and 1595 nm to shorter wavelengths between 950 nm and 1075 nm.

Image larger beams

The magnification properties allow you to image beams that are larger than the sensor.

HIGH QUALITY IMAGING

Built with a high quality coated anti-reflection input window that allows wavelength conversion with low distortion and maximum image resolution.

Ready to use within minutes

Removable and easily C-mounted onto the entrance port of the BEAMAGE camera.

Specifications

Measurement capabilities
Spectral range	1495 - 1595 nm
Maximum beam size	19 mm
Pixel multiplication factor (PMF)	3.29
Minimum measurable beam	230 μm
Linearity	Non-linear, IR converted output ∝ input intensity^1.41
Distortion	-1.0% barrel distortion (inverted image)
Damage thresholds
Damage thresholds	1 W/cm2
Physical characteristics
Dimensions	46? X 97D mm
Weight	0.21 kg
