Datasheet

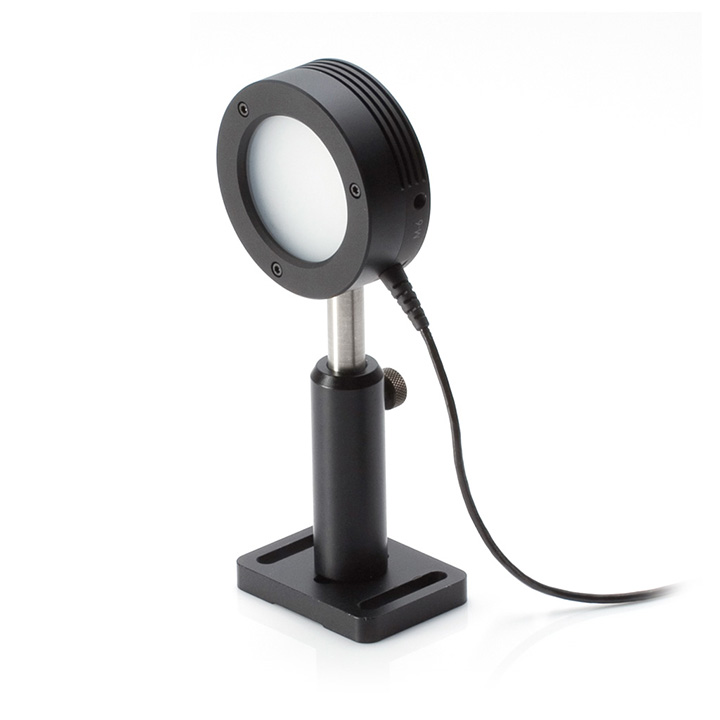

The J-50MB-IR energy sensor is specifically design for high energy and high peak power Erbium and Holmium medical lasers. This sensor is like the J-50MB-YAG, but is designed to operate further in the infrared.
This sensor is terminated in a SmartProbe DB25 cable and is directly compatible with FieldMaxII-TOP, FieldMaxII-P, LabMax-TOP, and LabMax-Pro SSIM meters.
A USB-direct (PN 1191440) model is available.
A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.
Pyroelectric energy sensor with MaxBlack coating and diffuser for measuring laser pulses from 1 mJ to 3J at up to 30 pps.
Key Features:
500 nm to 3.0 μm spectral range
50 mm diameter active area
1 mJ to 3J energy range
30 pps repetition rate operation
ISO 17025 accredited
Specifications
