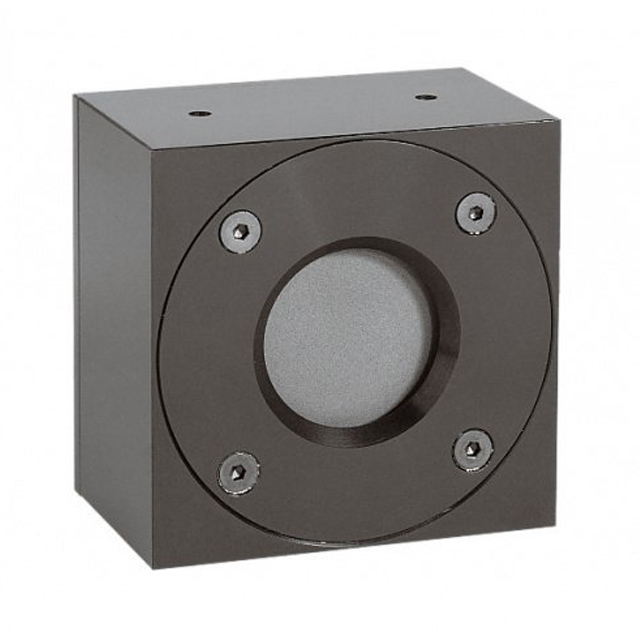

L30C-UAE OEM Thermal Power/energy Laser Sensor

Updated:2025-03-13

Brand：Ophir
Model：L30C-UAE
Description: The L30C-UAE is a compact OEM thermal power/energy laser sensor. It has a 26mm aperture measures from 300mW to 10W free standing and to 100W when mounted to heat sink. It can measure energy from 30mJ
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L30C-UAE OEM Thermal Power/energy Laser Sensor Description：

The L30C-UAE is a compact OEM thermal power/energy laser sensor. It has a 26mm aperture measures from 300mW to 10W free standing and to 100W when mounted to heat sink. It can measure energy from 30mJ to 100J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20μm. It has Ethernet output.

L30C-UAE OEM Thermal Power/energy Laser Sensor Drawing：

L30C-UAE Drawing

L30C-UAE OEM Thermal Power/energy Laser Sensor Specifications：

Aperture	?26mm
Spectral Range	0.19-20μm
Power Range	300mW-100W
Energy Range	30mJ-100J
Dimensions	60 L x 60 W x 38 D (mm)
Max Average Power Density	14kW/cm2 at 100 W
Response Time	1.5 s
Max Energy Density(for <100ns)	0.3J/cm2
Max Energy Density(for 2ms)	10J/cm2
Max Average Power	100W heat sinked
Communication	Ethernet
