L50(300)A-IPL 7Z02780 Sensor For Air Or Gel Measurements

Updated:2025-03-13

Brand：Ophir
Model：L50(300)A-IPL
Description: L50(300)A-IPL sensor for air or gel measurements. This sensor measures pulses from IPL dermatological sources. It has a 65mm aperture with a glass window allowing measurement thru air or using gel. It
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L50(300)A-IPL 7Z02780 Sensor For Air Or Gel Measurements Description：

L50(300)A-IPL sensor for air or gel measurements. This sensor measures pulses from IPL dermatological sources. It has a 65mm aperture with a glass window allowing measurement thru air or using gel. It can measure energy from 120mJ to 1000J. It has the high damage threshold LP2 absorber and covers the spectral range from 0.5 to 1.3μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

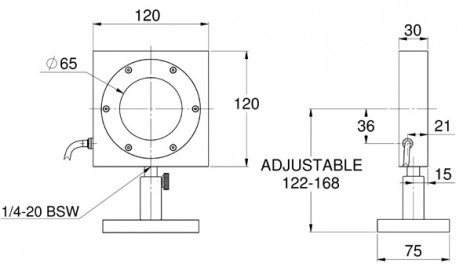

L50(300)A-IPL 7Z02780 Sensor For Air Or Gel Measurements Drawing：

L50(300)A-IPL Drawing

L50(300)A-IPL 7Z02780 Sensor For Air Or Gel Measurements Specifications：

Absorber Type	LP2 + coated window
Aperture	?65mm
Spectral Range	0.5-1.3μm
Power Range	400mW-300W
Energy Range	120mJ-1,000J
Dimensions	120 L x 120 W x 30 D (mm)
Max Pulse Energy	1000J
Max Average Power Density	17kW/cm2
Response Time	3 s
Max Energy Density(for <100ns)	0.1J/cm2
Max Energy Density(for 2ms)	130J/cm2
Max Average Power	300W
