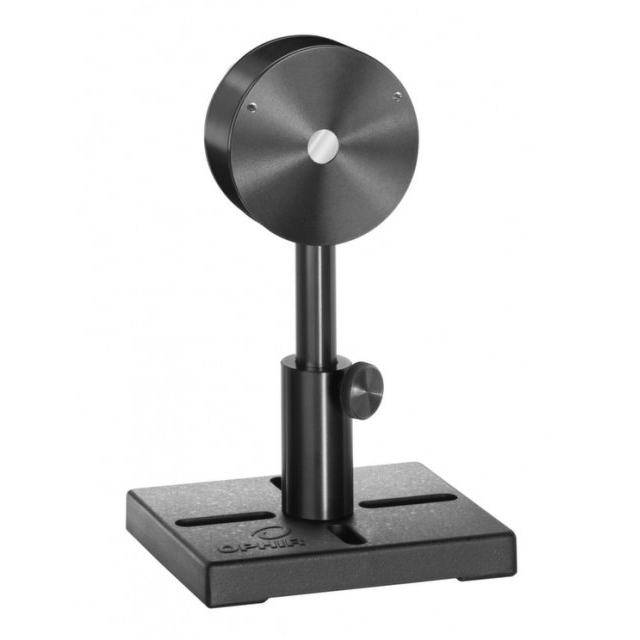

PD10-IR-pJ-C 7Z02946 Photodiode Energy Meter For Low Energies

Updated:2025-03-13

Brand：Ophir
Model：PD10-IR-pJ-C
Description: The PD10-IR-pJ-C is a photodiode energy meter for low energies with a 5mm aperture. It can measure energies from 30pJ up to 14nJ. It can operate at repetition rates up to 10kHz and covers the spectral
Data download

Feedback
WeChat

QQ

Online Service

Product Details

PD10-IR-pJ-C 7Z02946 Photodiode Energy Meter For Low Energies Description：

The PD10-IR-pJ-C is a photodiode energy meter for low energies with a 5mm aperture. It can measure energies from 30pJ up to 14nJ. It can operate at repetition rates up to 10kHz and covers the spectral range from 0.7 - 1.8μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

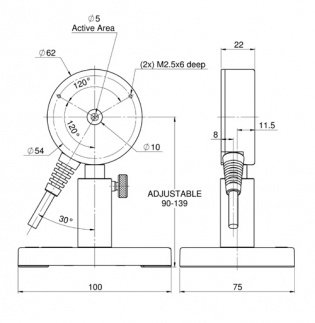

PD10-IR-pJ-C 7Z02946 Photodiode Energy Meter For Low Energies Drawing：

PD10-IR-pJ-C Drawing

PD10-IR-pJ-C 7Z02946 Photodiode Energy Meter For Low Energies Specifications：

Aperture	?5mm
Spectral Range	0.7-1.8μm
Energy Range	30pJ-14nJ
Maximum Frequency	10,000Hz
Dimensions	?62 W x 22 D (mm)
Max Pulse Energy	14nJ
Max Average Power Density	5W/cm2
Max Pulse Width	0.005 ms
Max Average Power	0.2mW
