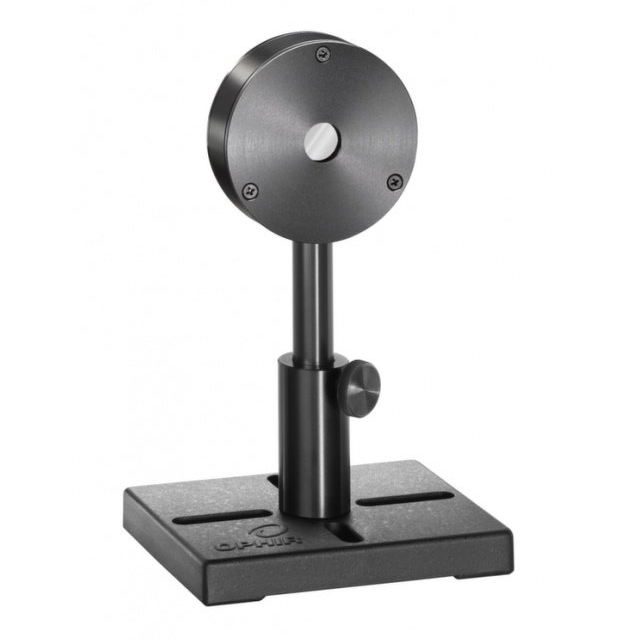

PE10-C 7Z02932 Pyroelectric Energy Meter For Low Energies

Updated:2025-03-13

Brand：Ophir
Model：PE10-C
Description: The PE10-C is a pyroelectric energy meter for low energies with a 10mm aperture. It can measure energies from 1μJ up to 10mJ. It can operate at repetition rates up to 25kHz and covers the spectral ran
Data download

Feedback
WeChat

QQ

Online Service

Product Details

PE10-C 7Z02932 Pyroelectric Energy Meter For Low Energies Description：

The PE10-C is a pyroelectric energy meter for low energies with a 10mm aperture. It can measure energies from 1μJ up to 10mJ. It can operate at repetition rates up to 25kHz and covers the spectral range from 0.15 - 12μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

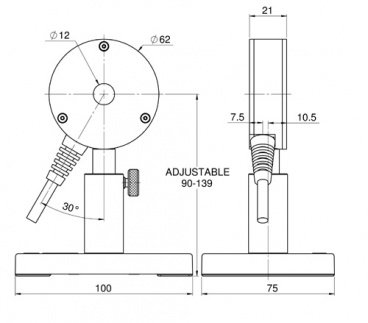

PE10-C 7Z02932 Pyroelectric Energy Meter For Low Energies Drawing：

PE10-C Drawing

PE10-C 7Z02932 Pyroelectric Energy Meter For Low Energies Specifications：

Absorber Type	metallic
Aperture	?12mm
Spectral Range	0.15-12μm
Energy Range	1μJ-10mJ
Maximum Frequency	25,000Hz
Dimensions	?62 W x 21 D (mm)
Max Pulse Energy	10mJ
Max Average Power Density	50W/cm2
Max Pulse Width	30μs
Damage Threshold(for <100ns)	0.1J/cm2
Damage Threshold(for 2ms)	6J/cm2
Max Average Power	2W
