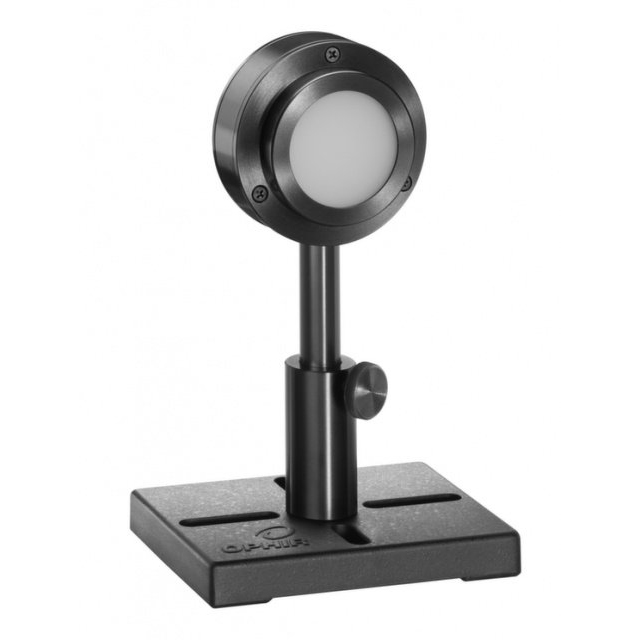

PE50-DIF-C 7Z02939 Pyroelectric Energy Meter

Updated:2025-03-13

Brand：Ophir
Model：PE50-DIF-C
Description: The PE50-DIF-C is a pyroelectric energy meter with a diffuser for concentrated beams. It has a 35mm aperture and can measure energies from 20μJ up to 10J. It can operate at repetition rates up to 10kH
Data download

Feedback
WeChat

QQ

Online Service

Product Details

PE50-DIF-C 7Z02939 Pyroelectric Energy Meter Description：

The PE50-DIF-C is a pyroelectric energy meter with a diffuser for concentrated beams. It has a 35mm aperture and can measure energies from 20μJ up to 10J. It can operate at repetition rates up to 10kHz and covers the spectral range from 0.19 - 2.2 and 2.94μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

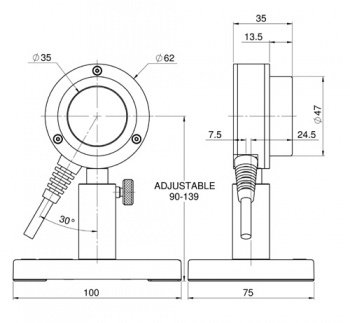

PE50-DIF-C 7Z02939 Pyroelectric Energy Meter Drawing：

PE50-DIF-C Drawing

PE50-DIF-C 7Z02939 Pyroelectric Energy Meter Specifications：

Absorber Type	Metallic with diffuser
Aperture	?35mm
Spectral Range	0.19-2.2μm, 2.94μm
Energy Range	20μJ-10J
Maximum Frequency	10,000Hz
Dimensions	?62 W x 35 D (mm)
Max Pulse Energy	10J
Max Average Power Density	100W/cm2
Max Pulse Width	5 ms
Damage Threshold(for <100ns)	1J/cm2
Damage Threshold(for 2ms)	40J/cm2
Max Average Power	25W
