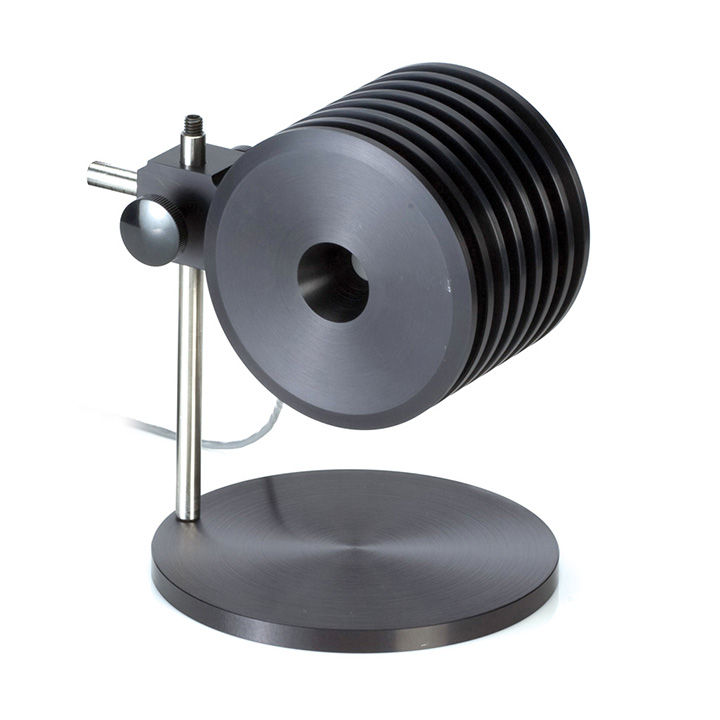

Coherent PM150 Power Sensor

Updated:2025-03-13

Views:1356

  • Brand: Coherent
  • Model: PM150
  • Description: This PM150 sensor is a convectively-cooled laser power sensor intended for measuring lasers up to 150W.The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power me
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent PM150 Power Sensor Description：

Datasheet

This PM150 sensor is a convectively-cooled laser power sensor intended for measuring lasers up to 150W.The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog.

300 mW to 150W power sensor, 0.25 to 11 μm spectral range, 19 mm diameter active area.

Key Features:

300 mW to 150W range

19 mm diameter active area

Spectrally flat broadband coating

0.25 to 11 μm spectral range

Convective air-cooled

ISO 17025 accredited

Specifications

Cable Type
PM DB-25
Cooling Type
Air
Power Range
300 mW to 150W
Active Area Diameter
19 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
1
Maximum Intermittent Power (watts)(<5 minutes)
300
Long-Pulse Joules Range (joules)
1 to 150
Wavelength Range (micrometers)
0.25 - 11
Maximum Power Density (kilowatts per square centimeter)
6
Maximum Energy Density (millijoules per square centimeter)
600, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
2
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±1
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
514
Cable Length (meters)
2
