User's Manual

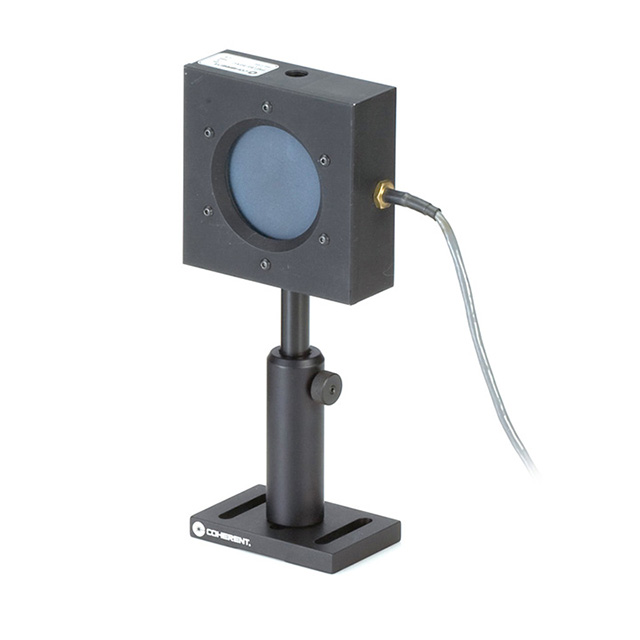

This PowerMax-RS PM150-50XC sensor is a water-cooled laser power sensor intended for measuring lasers up to 150W, and up to 80W without water for short durations (up to five minutes at a time). It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensation is available from 157 nm to 1064 nm.
Water-cooled thermopile sensor with UV coating for measuring pulsed & CW lasers between 300 mW and 150W. It can be used to measure 80W without water, intermittently, for up to five minutes. Direct RS232 interface.
The sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. A DB25 model (PN 1098443) is also available.
The RS232 cable must be powered by 5 VDC. An optional external power supply (PN 1105557) is available.
Key Features
300 mW to 150W range
50 mm diameter active area
UV coating
0.15 to 1 μm spectral range
Convective air-cooled
Direct RS232 interface
ISO 17025 accredited
Specifications
