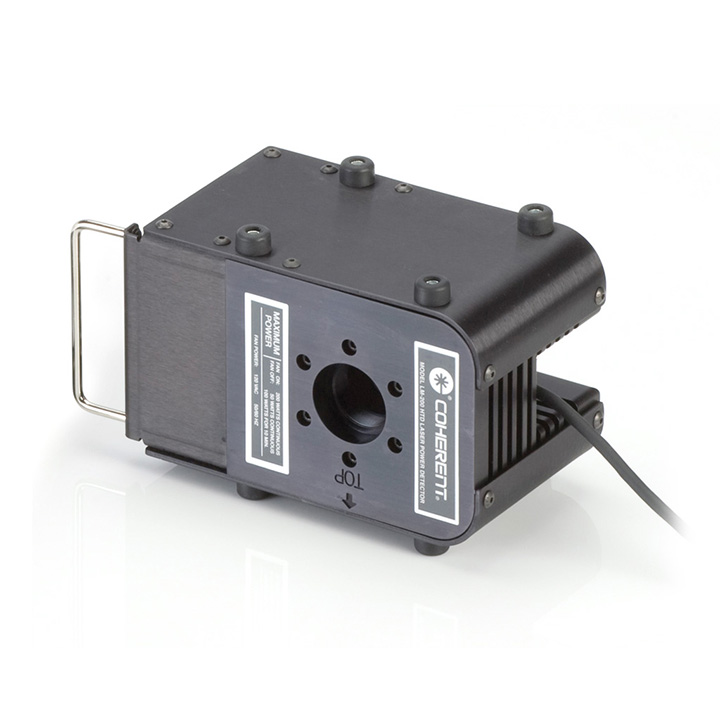

Coherent PowerMax-USB LM-200 (12V DC) Power Sensor

Updated:2025-03-13

Brand: Coherent
Model: PowerMax-USB LM-200
Description: This PowerMax-USB LM-200 sensor is terminated in a USB cable that interfaces directly to a PC. A 12V DC power supply and cord are included to power the fan.A DB25 model (PN 2290159) is available.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PowerMax-USB LM-200 (12V DC) Power Sensor Description：

This PowerMax-USB LM-200 sensor is terminated in a USB cable that interfaces directly to a PC. A 12V DC power supply and cord are included to power the fan.A DB25 model (PN 2290159) is available.

SMA fiber adapter (PN 1098589) and FC/PC fiber adapter (PN 1098339) accessories are available when used with a 1.035-40M Adapter Ring (PN 33-9432-000).

These unique position-sensing thermopiles display the position of the incident beam on the sensor disk in addition to measuring power. This information allows the user to safely and precisely align the sensor, and the beam is measured. This is particularly useful for non-visible beams.

Key Features:

100 mW to 200W range

19 mm diameter active area

Beam position measurement

Spectrally flat broadband coating

0.25 to 10.6 μm spectral range

Fan-cooled

Fiber adapters available

Direct USB interface

ISO 17025 accredited
