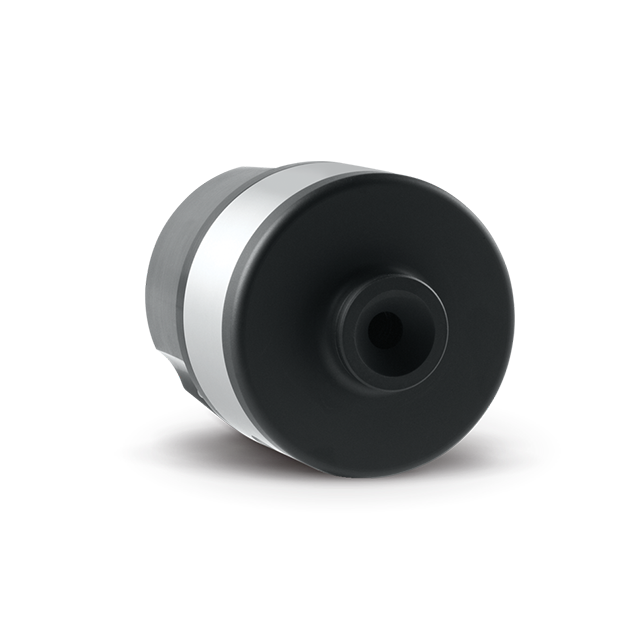

Gentec-EO THZ5I-BL-BNC Terahertz Detector

Updated:2025-03-13

Brand: Gentec-EO
Model: THZ5I-BL-BNC
Description: Gentec-EO THZ5I-BL-BNC Terahertz detector with integrated analog module for power measurement up to 140 μW.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Gentec-EO THZ5I-BL-BNC Terahertz Detector Description：

Datasheet(CN) Datasheet(EN)

Gentec-EO THZ5I-BL-BNC Terahertz detector with integrated analog module for power measurement up to 140 μW.

Key Features

Relative Measurements from 0.1 to 30 THz

Broadband, room temperature operation, easier to use and less expensive than a Golay cell

Measure Power from nW to mW

With state of the art pyroelectric sensors, measure down to 100 nW.

Integrated Analog Module

Plug the head directly to your oscilloscope or lock-in amplifier.

Battery or AC Powered

Includes 9V battery and AC power eliminator

Calibrated at 0.63 μm

THZ-I-BNC detectors are calibrated at a single wavelength (0.63 μm) and include typical wavelength correction data from 0.25 to 440 μm. They are used for relative measurements outside that range.

Specifications

Measurement capabilities
Maximum average power	62.5 μW
Noise equivalent power	1 nW
Spectral range	10 - 3000 μm
Frequency	0.1 - 30 THz
Typical rise time	0.2 s
Typical power sensitivity	70 kV/W
Chopping frequency	5 Hz
Analog output	0 - 10 V, BNC
Minimum repetition rate	1000 Hz
Damage thresholds
Maximum average power density	0.05 W/cm2
Physical characteristics
Aperture diameter	5 mm
Absorber	BL
Dimensions	81.3? X 99.3D mm
Weight	0.5 kg
