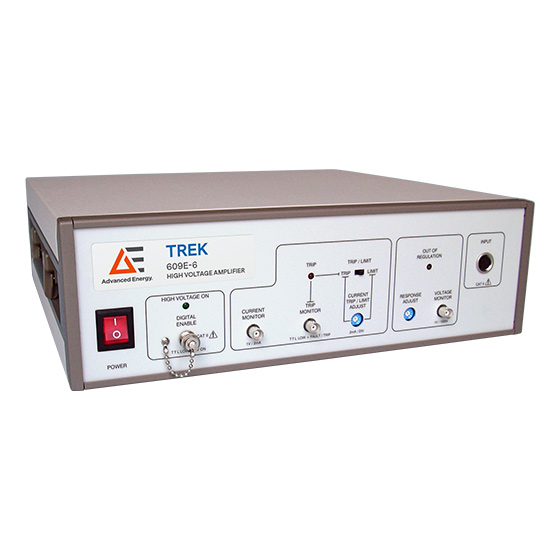

Trek 609E-6 High Voltage Amplifier Description：

Datasheet

The DC-stable Trek 609E-6 high-voltage amplifier is used for electrostatic chucks, mass spectrometers, and various other industrial and research applications. Its low-noise operation, extensive bandwidth, and high slew rates are backed by an all-solid-state design. And you can wire different input configurations into the unit. Configure as non-inverting, inverting, or differential. The Trek 609E-6’s four-quadrant, active output stage sinks or sources the current into reactive or resistive loads throughout the output voltage range. This is essential for the accurate output responses and high slew rates demanded by a variety of loads.

Features

Dynamic adjustment optimizes the AC response for various load parameters

NIST-traceable calibration certificate provided with each unit

DC-stable for programmable supply applications

Local and remote high voltage On/Off capabilities

Switch selectable for current limit or trip

Benefits

Drive capacitive loads via a four-quadrant output

Enable high accuracy thanks to a closed-loop system

Safeguard equipment with short-circuit protection

Take advantage of low-output noise and ultra-accurate outputs

Specifications
