Baker Hughes USM GO+ Portable Ultrasonic Flaw Detector Description：

Datasheet

Introducing the USM Go+ that takes field inspection NDT to the next level. Light, handy and controlled by an intuitive arrow-keypad, it has the latest industrial electronics under the hood and offers excellent ultrasonic performance which allows for reliable detection of defects located just below the surface of the test piece.

Benefits

The ideal device for portable ultrasonic testing and the perfect tool for operating e.g., in confined spaces, due to its comfortable fit

The USM Go+ is designed with a rugged rubber casing to stand up to the harshest field conditions and it is dust and waterproof to IP67

The 108 mm x 64,8 mm screen (zoomed mode) with best in class 800 x 480 pixel resolution offers optimum echo dynamics and separation

The display is readable in bright sunlight as well as in darkness, and can be adjusted to suit your working environment.

The excellent near surface resolution enables you to detect flaws located just under the surface of the test piece with a high degree of reliability

Features

A-Scan video recording up to 8 minutes allows live reporting and playback of an entire inspection sequence for review by more qualified personnel

A truly ambidextrous instrument with the flip function of the display and functionality of the rocker switches

AUTOANG (Auto Angle) feature calculates the refracted angle of an angle beam wedge and utilizes it for trigonometric flaw location projections

A standard USB connection allows for data to be downloaded from the flaw detector for further analysis or storage

The instrument’s 2 GB memory can be easily exchanged by SD cards up to 16 GB

Reports are produced in jpeg or bmp format so there is no need for special reading software

Backwall Echo Attenuator (BEA) helps to find very small defects, improving detectability

Automatic Gate Threshold for the 2 gates ensuring accurate measurements made under the same conditions

Applications

Weld inspection

Inspection of forging and castings

Inspection of rails

Inspection of composites

More demanding applications such as narrow band filters, low noise digital amplifier, and square wave pulsers

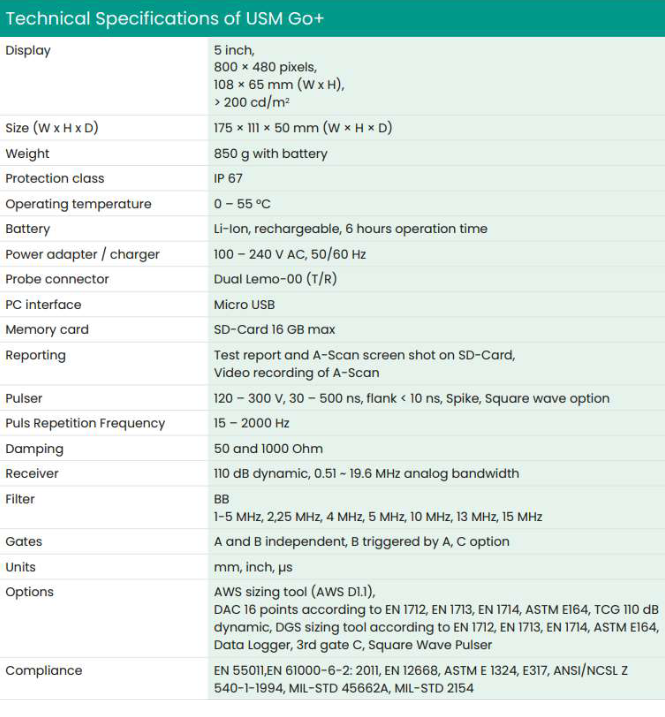

Specifications
