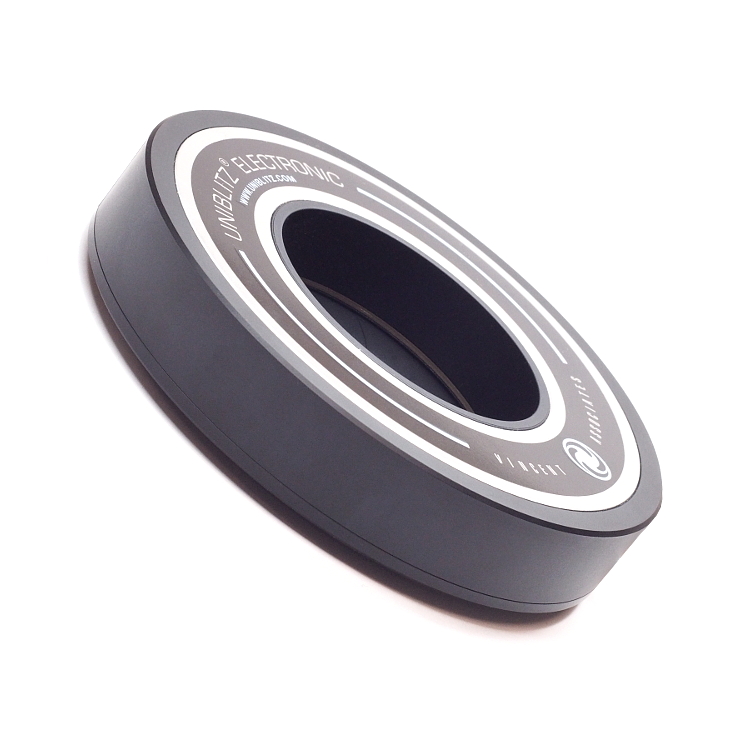

Uniblitz CS65H 65mm Optical Shutter

Updated:2025-03-13

Brand: Uniblitz
Model:CS65H
Description: The Uniblitz CS65H has been designed to provide accurate, repeatable exposures for a wide variety of applications such as telescopy and aerospace. For 2022, the CS65 has been upgraded with dual actuat
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Uniblitz CS65H 65mm Optical Shutter Description：

Datasheet

The Uniblitz CS65H has been designed to provide accurate, repeatable exposures for a wide variety of applications such as telescopy and aerospace. For 2022, the CS65 has been upgraded with dual actuators to significantly improve the shutter speed and reliability (“CS65H”). The slim form-factor provides a 65mm aperture that can be inserted into a 5.00 inch diameter housing. It’s available in a housed or un-housed configurations for OEM applications.

Key Features

Large 65mm aperture

Uni-stable operation

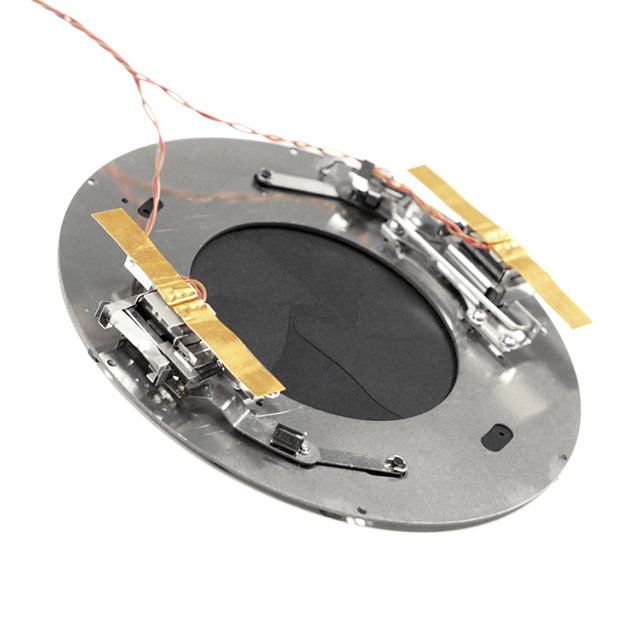

6-bladed, dual-actuator design

Slim form-factor

RoHS Compliant

Transfer time on opening (MET): 38.0 milliseconds

Transfer time on closing (MET): 35.0 milliseconds

Configured for the VCM-D1 Shutter Driver
