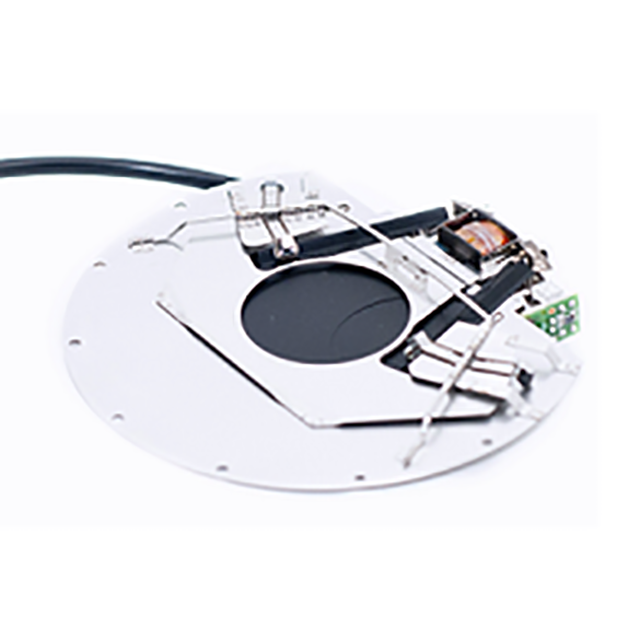

VS35 35mm Optical Shutter (Clearance)

Updated:2025-03-13

Brand: Uniblitz
Model:VS35
Description: The Uniblitz VS35 has been designed to provide accurate, repeatable exposures for a wide variety of applications. The VS series shutters have been successfully field tested in microscopy, video imagin
Data download

Feedback
WeChat

QQ

Online Service

Product Details

VS35 35mm Optical Shutter (Clearance) Description：

Datasheet

The Uniblitz VS35 has been designed to provide accurate, repeatable exposures for a wide variety of applications. The VS series shutters have been successfully field tested in microscopy, video imaging, PMT protection, and photographic applications worldwide.Uni-stable shutter devices, like the VS35, require power to hold the blades in the open state (though some of these clearance devices may be custom-configured for “normally open” operation).

Key Features

35mm aperture

Uni-stable operation

Small, slim form-factor

RoHS Compliant

Transfer time on opening: 13.0 milliseconds

Total opening time: 18.0 milliseconds

Available Part Numbers

Part Number	Product Information
VS35S1ZM1R1-SD	35mm Shutter, for use with VCM-D1, AlMgF2 (ZM) coated blades, R1 High Temp Option with Y-cut
VS35S1T0LR1-EC-SD	35mm Shutter, for use with VCM-D1,Teflon® coated blades, 18″ Flying leads, un-housed, R1 High Temp Option, EC Vacuum Option
VSR35E1T0-SD	35mm Shutter, for use with D880C/VED24, Normally Open, Teflon® coated blades, un-housed
VS35S2ZM0-SD	35mm Shutter, for use with VCM-D1, AlMgF2 (ZM) coated blades, Housed
VS35S2ZM1-SD	35mm Shutter, for use with VCM-D1, AlMgF2 (ZM) coated blades, Housed, with Electronic Sync
